Product Overview

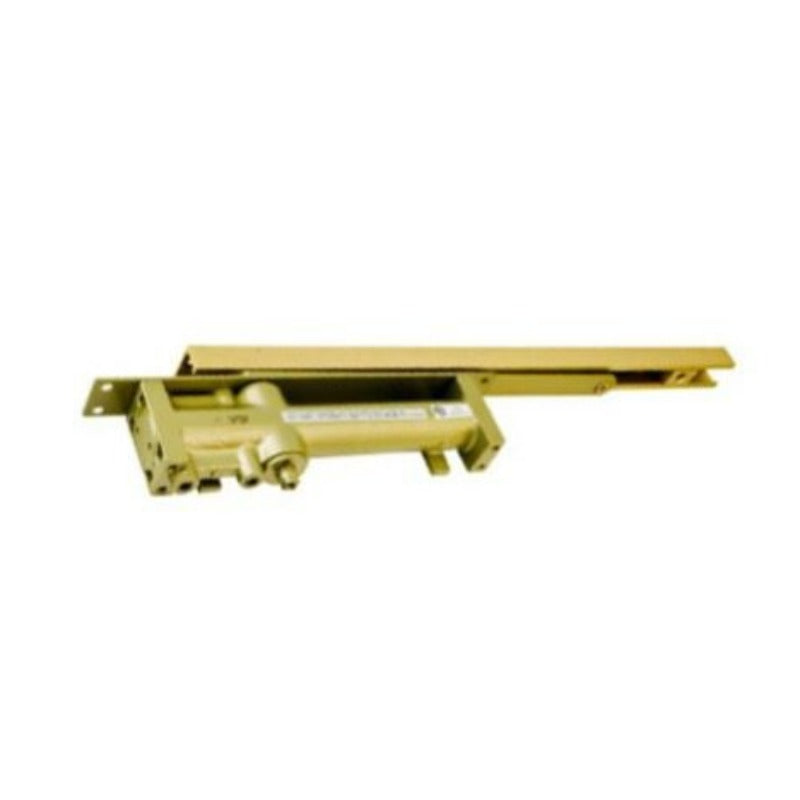

Some doors need controlled closing without a visible closer body above the frame. This Euro Art Size 3 concealed closer is designed to sit within the door leaf, leaving the guide rail visible only when the door is open, according to JB Saeed Studio. The page lists a minimum 44mm door thickness, maximum 950mm width, 60kg weight and 120° opening angle. These limits make the pre-installation measurement essential: a concealed closer requires a suitable door structure and precise routing.
Trust & Purchase Details
JB Saeed Studio identifies Euro Art SKU EUR-269, titled “Concealed Door Closer Size 3 Gold.” The live description says EN 3, non-handed for left or right doors, adjustable closing and latch action, and an optional hold-open arm that is not included. It lists 44mm or thicker door shutters, up to 950mm width and 60kg weight. The page does not provide a routing template, certification for fire doors, exact rail dimensions, closing-speed adjustment range or included fastener list. Ask for the manufacturer's installation sheet before any door preparation.
Keep the Hardware Quiet in the Room
With the main mechanism integrated into the door leaf, the surface remains visually simpler than a conventional overhead closer. The gold finish can coordinate with warm-toned hinges or handles, although the installed visible parts and their precise colour should be confirmed from the product images and package.
The closer still has a job to do. Closing speed governs the main travel; latch action helps the door reach the frame at the end. An installer should adjust both to the actual latch and room conditions. Do not turn adjustment screws beyond the manufacturer's range, and do not assume a listed 120° opening means the surrounding wall or furniture permits the same swing.
Concealed installation needs enough solid material inside the door. A nominal 44mm thickness is the listed minimum, but internal construction and reinforcement matter. Hollow or glazed doors may need special approval. The manufacturer drawing should guide the cut-out, guide-rail position and hinge relationship.
